Audio amp based on TDA2003

[odessa]

Hi all...


Me again

Ok... heres my amp project !!!

I am amazed by the tiny amount of components needed and also by the quality too... a fantastic little chip...plus it runs fine on a 9v battery too !!

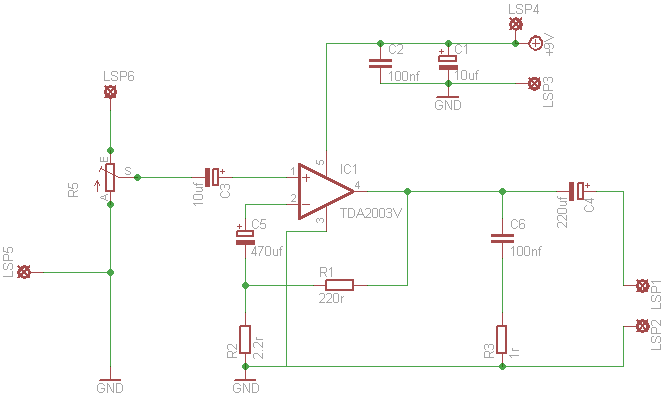

Done in Eagle

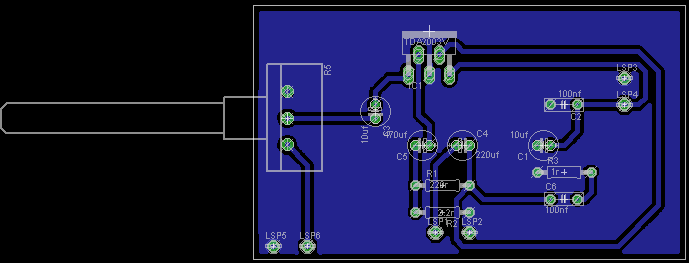

Ready to be printed and etched

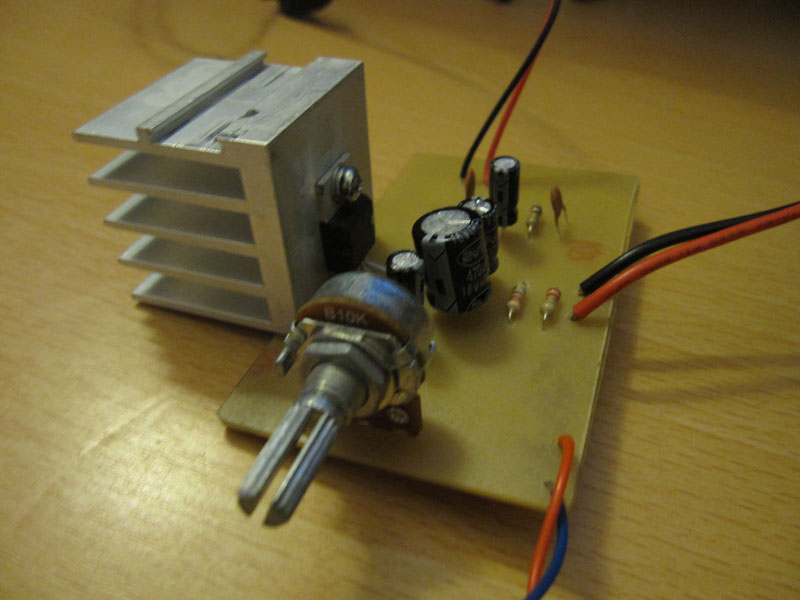

Finished product



This one was done using the Toner Transfer method, great for small boards


[bitfogav]

Im impressed!, thats a neat little project.

Do the heat sink get hot or warm at all Jay?

[odessa]

Hi Gav,

Thanks I must say again I'm amazed at the quality, the vid does it no justice

It did get very hot with a smaller heatsink running off my bench PSU, drew about 1/2 amp at 9v. Running on the little 9v supply with that sink ( stolen from an old laser printer ) it's cold to touch.

[brad]

fantastic project and very nice finished product

[odessa]

Thx

The next stage is to build another identical one, get a dual gang pot and an Ipod line in/charge desk stand thing.

Then I'll have a stereo ipod dock that will charge too.

I think I'll make the cabinet out of wood and make it look old fashioned ... maybe oak

[brad]

A well made wood cabinet can look fantastic!
