Didnt Work

Post by 1kiko1 » Sat Oct 01, 2011 7:31 am

hello brad i finished the circuit board but it doesnt seem to work. i put a 6v powersource in and it didnt work i programmed and everything i dont know what happen

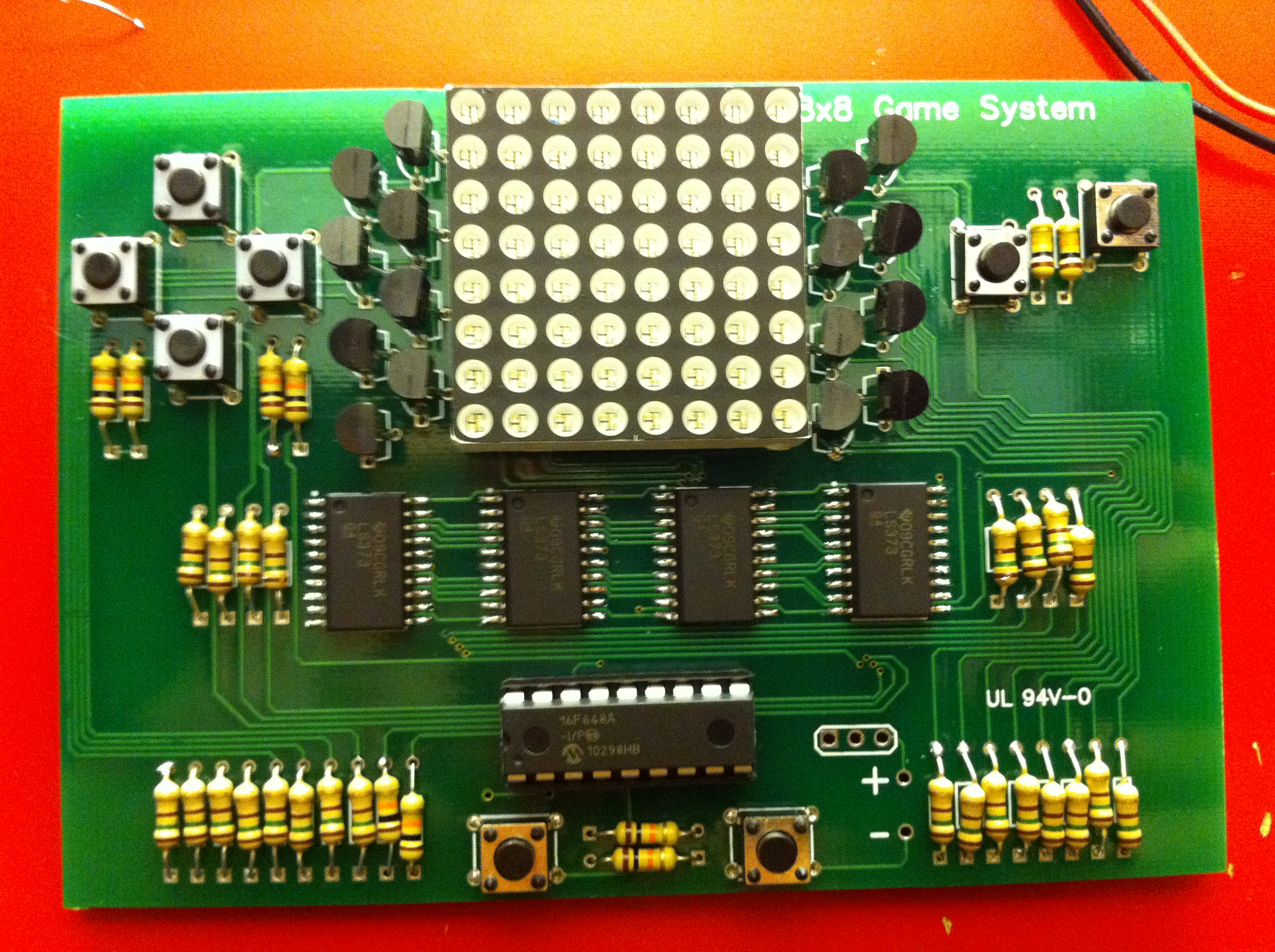

Attachments

User avatar
bitfogav
Moderator
Moderator
Posts: 908
Joined: Sun Mar 28, 2010 9:03 pm
Location: United Kingdom
Contact:

Re: Didnt Work

Post by bitfogav » Sat Oct 01, 2011 6:04 pm

Im not 100% sure but isn't there ment to be a Regulator here?!

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Sun Oct 02, 2011 12:49 am

I put a 6v powersource in the middle of the three buttons and the negative in the negative by just touching them

User avatar
sdudley
Moderator
Moderator
Posts: 337
Joined: Sun Mar 28, 2010 1:33 pm
Location: Florida, U.S.A.

Re: Didnt Work

Post by sdudley » Sun Oct 02, 2011 8:48 am

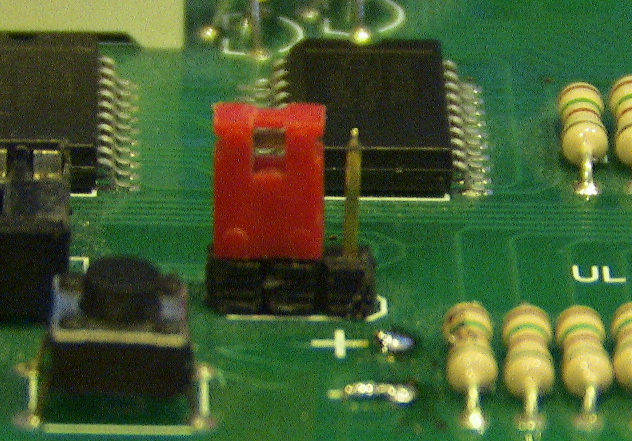

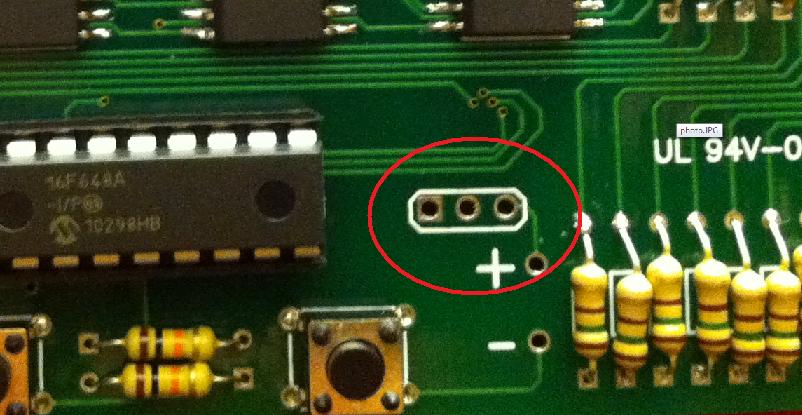

That is not for a regulator, it is for your ON/Off switch. Note that a jumper is used to select between on or off. It has three terminals, the middle is common (ground).
The other two holes are for your power supply (battery).
power supply.png
power supply.png (258.44 KiB) Viewed 9786 times

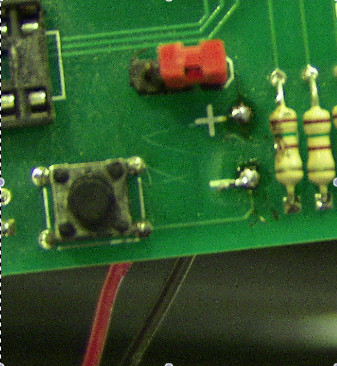

Forgive the sloppy solder job as I have removed and replaced my battery supply several times.

Stacy
Any time you deviate from sequential consistency, you increase the complexity of the problem by orders of magnitude.

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Sun Oct 02, 2011 11:06 am

what is that jumper? where do i buy it? and what is that stick in the far right?
can you explain to me more about that jumper please

User avatar
sdudley
Moderator
Moderator
Posts: 337
Joined: Sun Mar 28, 2010 1:33 pm
Location: Florida, U.S.A.

Re: Didnt Work

Post by sdudley » Sun Oct 02, 2011 1:26 pm

1kiko1 wrote:what is that jumper? where do i buy it? and what is that stick in the far right?
can you explain to me more about that jumper please
That is not a stick. It is one of three pins called "header pins" and you can find them at many electronic supply places. They come in a row of 50 or so, and you simply break off as many as you need (in this case you only need three pins).

http://www.sparkfun.com/products/116

If you look at the traces going to those three holes, you will see that the middle hole is connected to the same place where you connect the negative side of the battery (you will see this on the back side of the PCB). The right hole is connected to the same place where you connect the positive side of the battery (you can see this trace on the front side of the PCB). The left hole is connected to nothing. You can break off three pins of the header and solder them into those three holes.

Then you will need a little jumper, called a J2 jumper:

http://www.sparkfun.com/products/9044

This jumper will create an electrical connection between two of the pins, it's just like using a switch. When you want to turn it on, you slide the jumper over the middle pin and right pin. When you want to turn it off, simply pull the jumper off and slide it over the left pin and the middle pin.


Alternatively, you could just use a simple Single Pole Double Throw on/off switch!

http://www.sparkfun.com/products/9609

:wink:
Any time you deviate from sequential consistency, you increase the complexity of the problem by orders of magnitude.

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Mon Oct 03, 2011 11:32 am

Can I just get a breadboard jumper and put it in the middle and right and connect the positive in the + and the negative in the -

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Mon Oct 03, 2011 11:40 am

Can I see a pic of the backside of your pcb please

User avatar
sdudley
Moderator
Moderator
Posts: 337
Joined: Sun Mar 28, 2010 1:33 pm
Location: Florida, U.S.A.

Re: Didnt Work

Post by sdudley » Mon Oct 03, 2011 11:26 pm

1kiko1 wrote:Can I just get a breadboard jumper and put it in the middle and right and connect the positive in the + and the negative in the -
1) Yes. You can use two small pieces of wire if you want to. Solder one into the middle hole, and the other into the right hole. When you want to turn it on, just twist the two wires together. When you want to turn it off, untwist them and separate them.

That is all a switch is doing - making a contact between two points.


2) Yes. Attach the power supply (battery or whatever you are using) positive to the + sign on the pcb, and the power supply negative to the - sign of the pcb.


3) I'm confused, why do you need to see the back of my pcb? It looks exactly like the back of your pcb.

Stacy
Any time you deviate from sequential consistency, you increase the complexity of the problem by orders of magnitude.

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Tue Oct 04, 2011 6:41 am

no i dont need to see it anymore but i did all that and it still dosnt work

User avatar
bitfogav
Moderator
Moderator
Posts: 908
Joined: Sun Mar 28, 2010 9:03 pm
Location: United Kingdom
Contact:

Re: Didnt Work

Post by bitfogav » Tue Oct 04, 2011 7:10 am

sdudley wrote:That is not for a regulator, it is for your ON/Off switch. Note that a jumper is used to select between on or off. It has three terminals, the middle is common (ground).
Thank you Stacy :) Could not find my 8x8 board at the time to check it out.



1kiko1, Have you checked that you have power and ground to the microchip?.

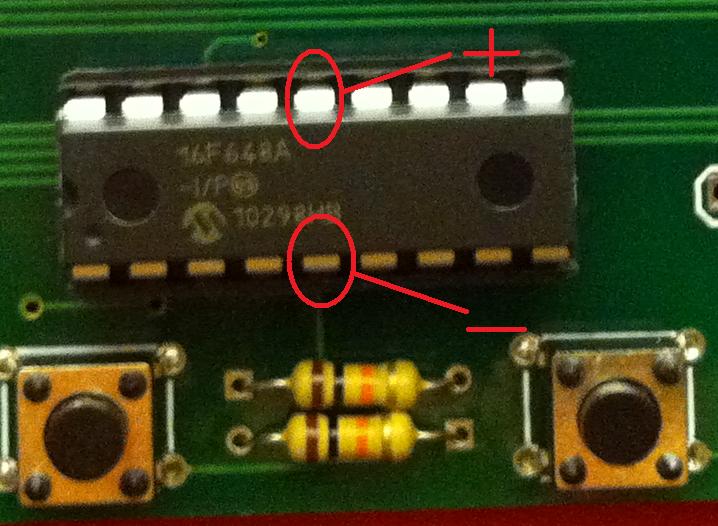

Remove the microchip from your 8x8 board and connect up your power supply to the board, you will need a multimeter and check that you have power and ground to the microcontroller. you will need to probe the two terminals shown in this picture, Dont forget to remove the microchip so you dont damage it!.

User avatar
sdudley
Moderator
Moderator
Posts: 337
Joined: Sun Mar 28, 2010 1:33 pm
Location: Florida, U.S.A.

Re: Didnt Work

Post by sdudley » Tue Oct 04, 2011 7:45 am

No problem... Nice picture by the way!

Stacy
Any time you deviate from sequential consistency, you increase the complexity of the problem by orders of magnitude.

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Sun Oct 09, 2011 5:20 am

Yea I tested it with the multimeter and I did get power to the microchip but it still dosnt work

User avatar
bitfogav
Moderator
Moderator
Posts: 908
Joined: Sun Mar 28, 2010 9:03 pm
Location: United Kingdom
Contact:

Re: Didnt Work

Post by bitfogav » Sun Oct 09, 2011 8:43 pm

Its difficult to fix something that you dont have infront of you.. But atleast we have eleminated a power and ground supply to the microntroller.

1. You could recheck all your solder joints, a poor connection?
2. You could try and programme another 16f648a if you have one and make sure that when you programme it, the programming is successful.

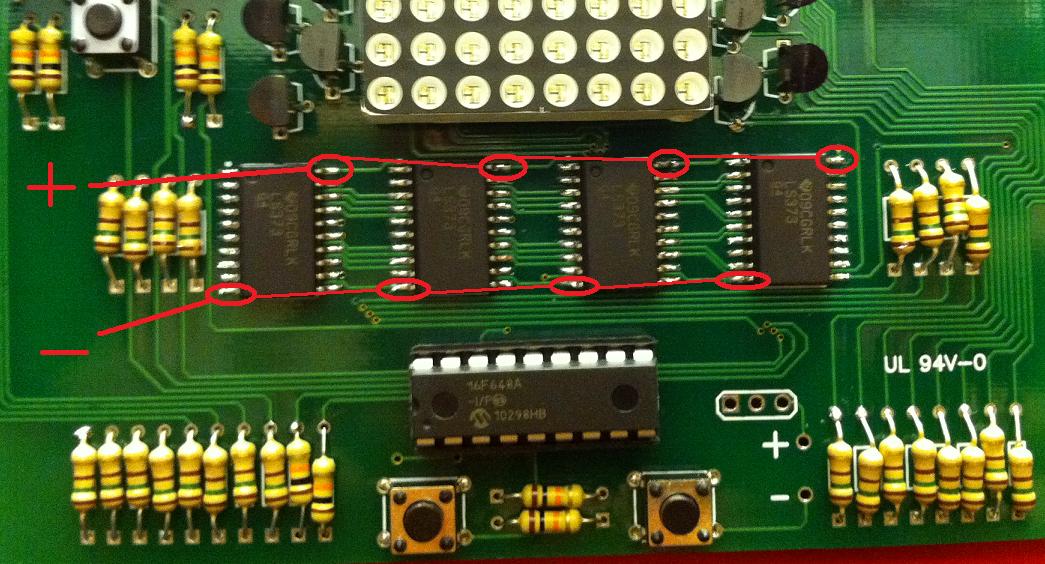

3. You could also check your powers and grounds to the 373 chips aswell. (as below)
4. I guess you did fit the resistors under the 8x8 matrix?.

User avatar
1kiko1
Can't get enough of electronics!
Can't get enough of electronics!
Posts: 57
Joined: Wed Jun 29, 2011 11:16 pm

Re: Didnt Work

Post by 1kiko1 » Tue Oct 11, 2011 11:57 am

still, new microcontroller
checked the voltage to the chips perfect
but i think is the tracks on the left dont send electricity flow brad told me that if i had problems to let him know and i think that is the case

i still dosnt work

thANKS FOR ALL THE HELP
